1. Installation of LSL Package in E-Prime

To enable LSL (Lab Streaming Layer) functionality in E-Prime, you first need to install the LSL Package, which acts as an extension for sending LSL markers directly from E-Prime.

You can download the required files from the following link: LSL - Package

Once downloaded, follow these steps to install the package:

  1. Navigate to the following directory on your computer:
     C:\Users\USER_NAME\Documents\My Experiments\3.0\Packages

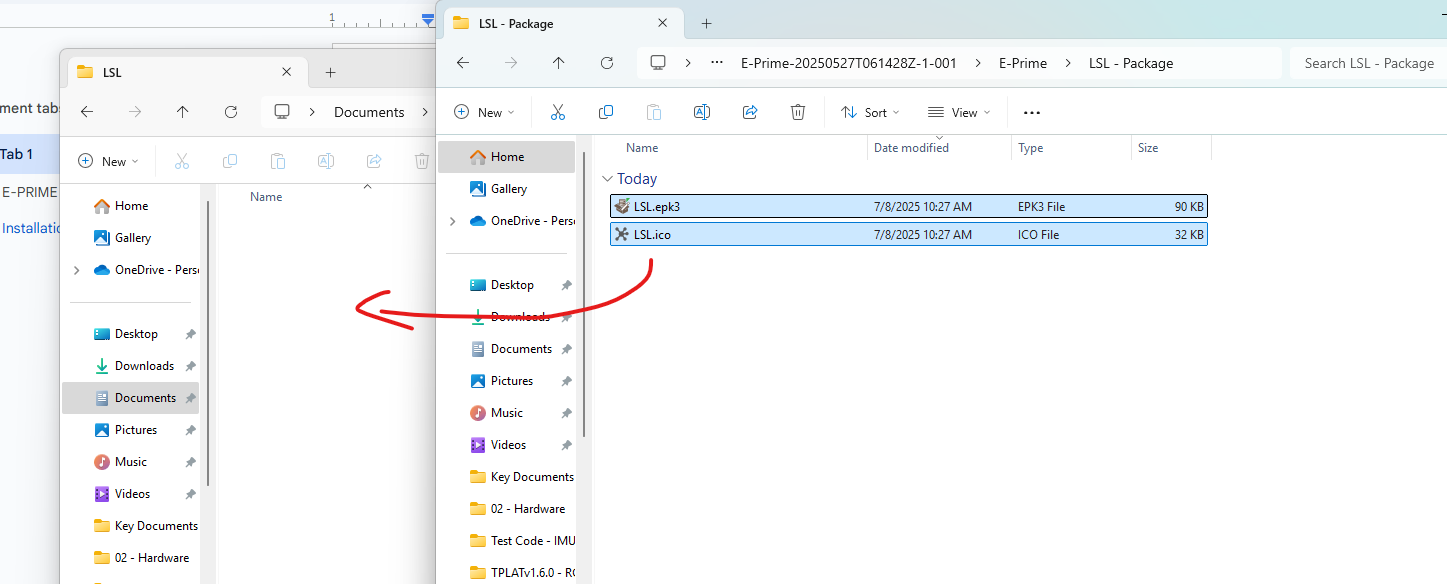

  2. If it doesn’t already exist, create a new folder called "LSL" in this directory.

  3. Paste the contents of the downloaded LSL Package into the LSL folder.

After completing these steps, the LSL functionality will be available for use in your E-Prime experiments.






2. Preparation of E-Prime

Now that the LSL Package is installed, the next step is to enable it within your E-Prime experiment:

  1. Open your E-Prime project (.es3 file).

  2. In the Structure view, double-click on   the top-level item (usually named after your experiment).

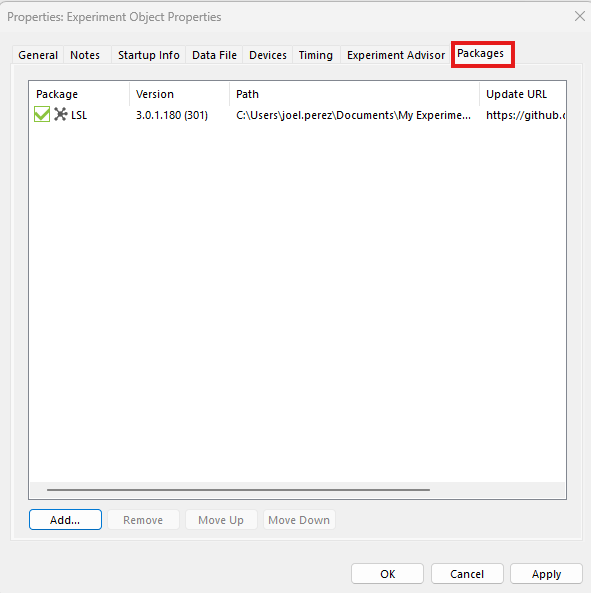

  3. A pop-up window will appear. Navigate to the Packages tab.

  4. Locate the LSL package and check the box to enable it.

  5. Click OK to apply the changes.





To enable communication between E-Prime and NIC2 via LSL markers, you need to include specific script routines in your E-Prime project. These scripts handle the connection and labeling process.

You can find examples of these scripts in the sample projects provided with the LSL package, such as LSLOddBall.es3. You can find it in this folder OddBall

The scripts you need to add to your experiment are:

  • LSLinit

  • NotifyWaitForConsumers

  • LSLWaitForConsumers

  • LSLUninit

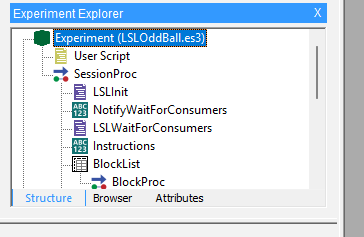

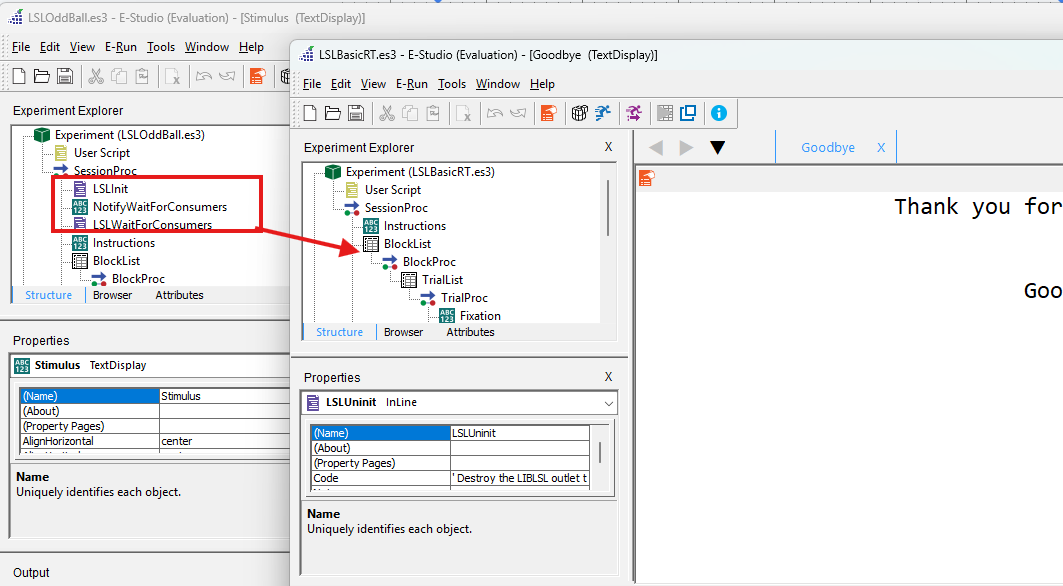

It is important that the scripts are located in the same position as the example.

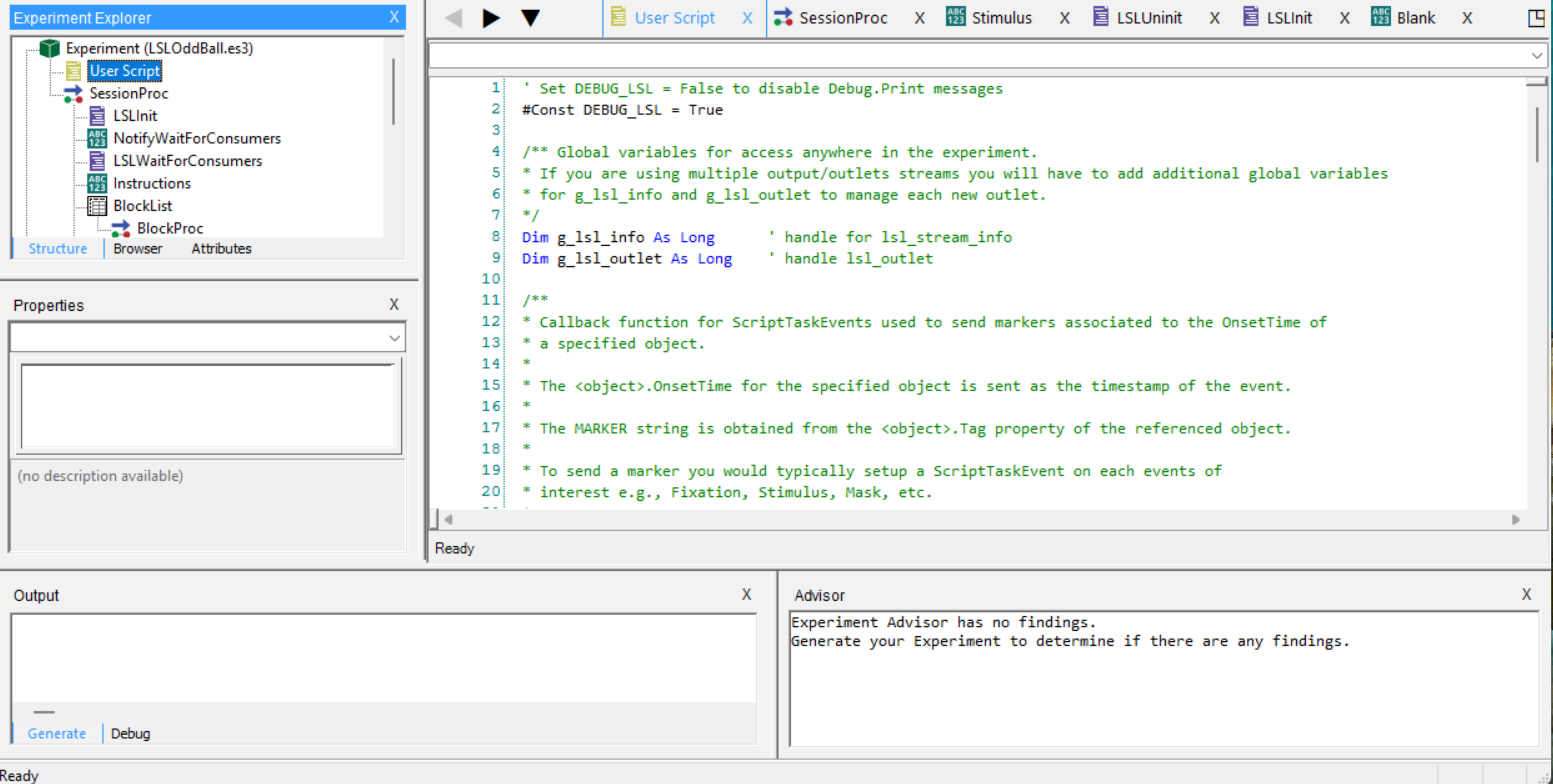

The final step is to copy the necessary code from the User Script section of the E-Prime example (e.g., LSLOddBall.es3) and paste it into your own project.

To do this:

  1. Open the example project (e.g., LSLOddBall.es3).

  2. Go to the User Script section.

  3. Copy all the code contained there.

  4. Open your own E-Prime project.

  5. Navigate to the User Script section and paste the copied code.





Once we have all this, E-Prime is prepared to send LSL markers to NIC2.



3. Different functions of E-Prime.

To send LSL markers during your experiment, E-Prime offers three different functions, each sending a specific type of marker:

  • LSLSendOnsetMarker: Sends a marker at stimulus onset.

  • LSLSendStimulusRTTimeMarker: Sends a marker that includes reaction time.

  • LSLSendTimestampMarker: Sends a custom timestamp marker.

You can choose which function to use depending on the type of information you want to transmit.

To assign one of these functions to a stimulus:

  1. Open the Stimulus object in your experiment structure.

  2. Click on the Properties icon (highlighted with a red circle).

  3. In the pop-up window, go to the Task Events tab.

  4. Add a new event and select the desired LSL function (e.g., LSLSendOnsetMarker) as the action.

  5. Configure the appropriate timing (e.g., OnsetTime) and argument (e.g., marker label) for the function.


And in Action we can select the function that we want to use.

Which is the difference between all the functions?

LSLSendOnsetMarker:

This one sends a marker at the onset time of an object (image displayed, stimulus, etc).


The information that is sent is the object’s .Tag.


This one is useful to mark the exact moment a visual stimulus is shown.

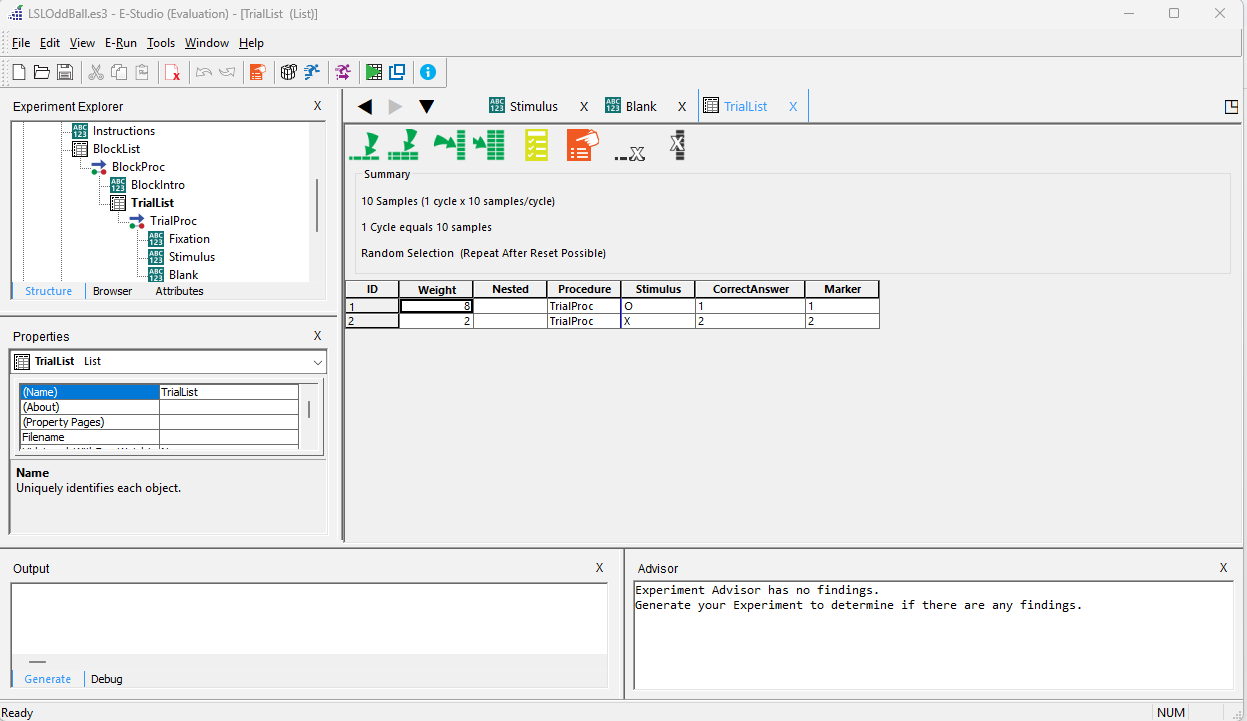

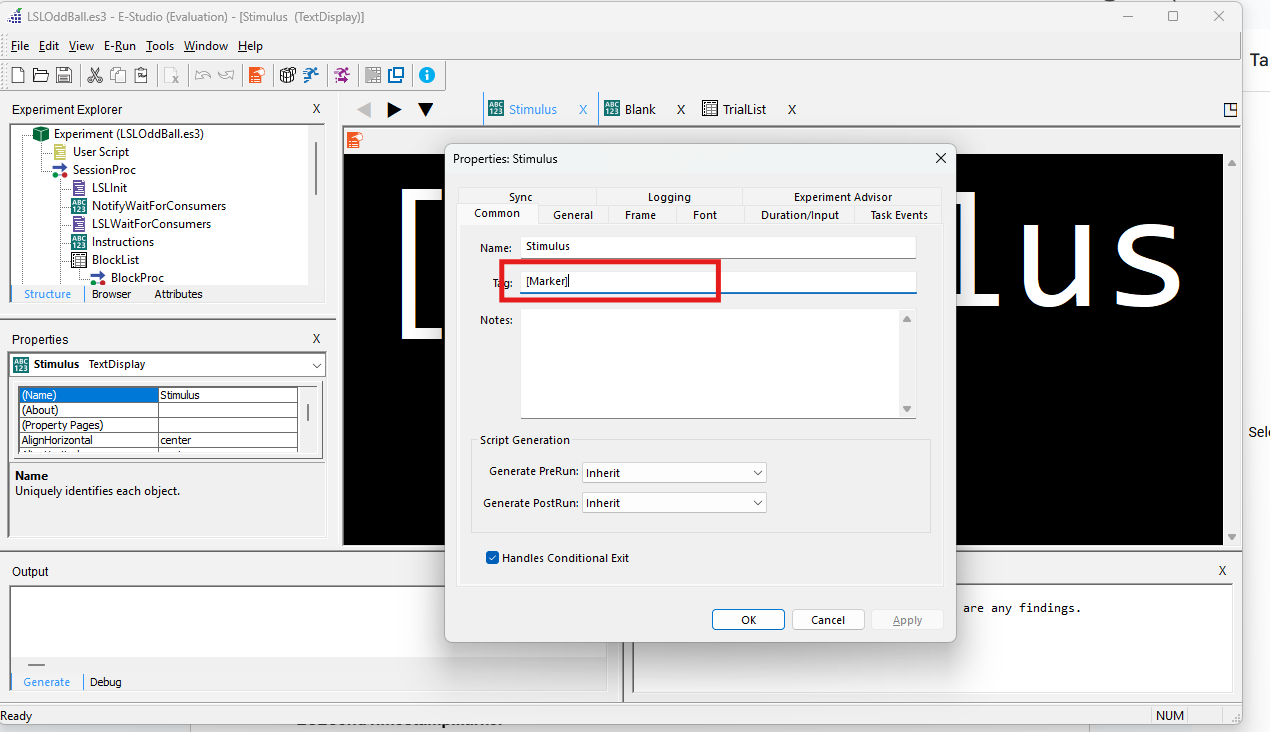

We can see in the picture how in the tag is written “[Marker]”, this tag is related to the TrialList that you can see in the next picture.



As you can see, when the stimulus is an "O", E-Prime sends a marker value of 1 to NIC2, and when the stimulus is an "X", it sends a value of 2. This is because these numbers correspond to the values specified in the "Marker" column of the table.





LSLSendStimulusRTTimeMarker


It sends a marker at the response time during a stimulus event. The timestamp that it uses is the reaction time (RTTime).


Also uses the object’s .Tag.


This one is useful for tracking when a participant actually responded (e.g. pressed a key) rather than when the stimulus appeared.






LSLSendTimestampMarker


It sends a marker with a custom timestamp based on the current time.


The timestamp that E-Prime sends is the current value from the E-Prime clock.


The marker can be any string or attribute in the custom field.

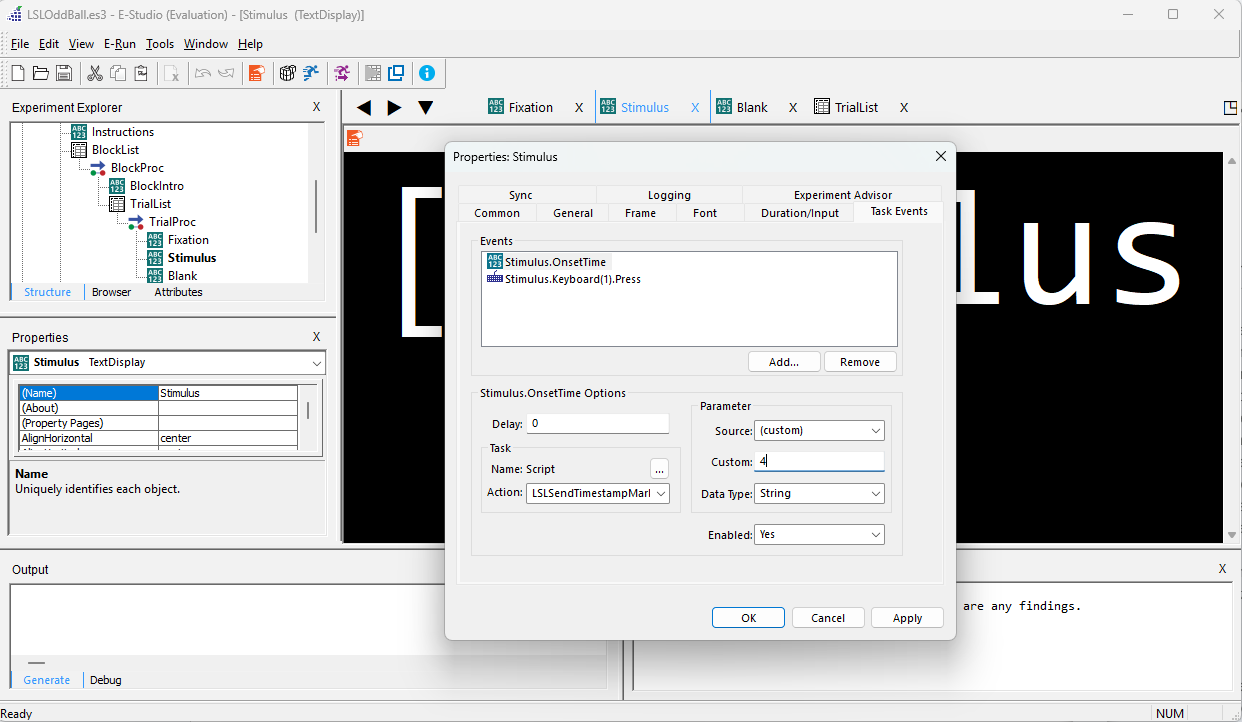

As you can see, the message that E-Prime sends corresponds to the value entered in the Custom field—in this case, the number 4. It’s important to enter a numeric value in this field, as NIC2 can only interpret numerical markers.


It is the most flexible use for logging custom events, for debugging, etc.


Summary table:


Function Name

Timestamp Source

Marker Source

Best For

LSLSendOnsetMarker

Object's .OnsetTime

Object's .Tag

Logging stimulus or object onset

LSLSendStimulusRTTimeMarker

Reaction Time (RTTime)

Object's .Tag

Logging participant responses

LSLSendTimestampMarker

Clock.Read (now)

Custom string/attribute

Custom or manual event logging



4. Configuration NIC2

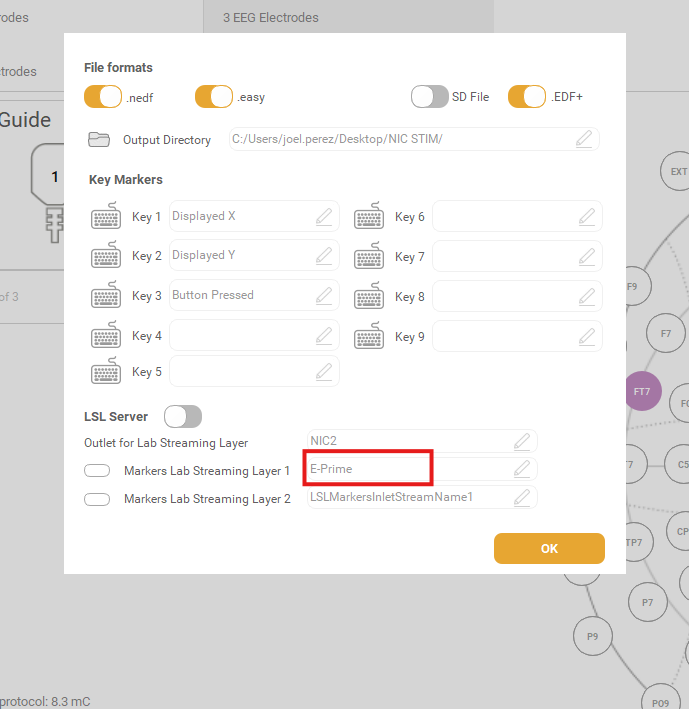

To configure NIC2 and establish a connection between NIC and E-Prime, open the LSLinit script. On line 16 of the code, you will find the creation of the LSL label (highlighted in the red square in the image below). This name must exactly match the one you enter in the Markers Lab in NIC2.


After this step, when you start the E-Prime protocol, you will see the Markers Lab Streaming indicator is in orange.



And when the E-Prime starts to send markers you will see it in green.

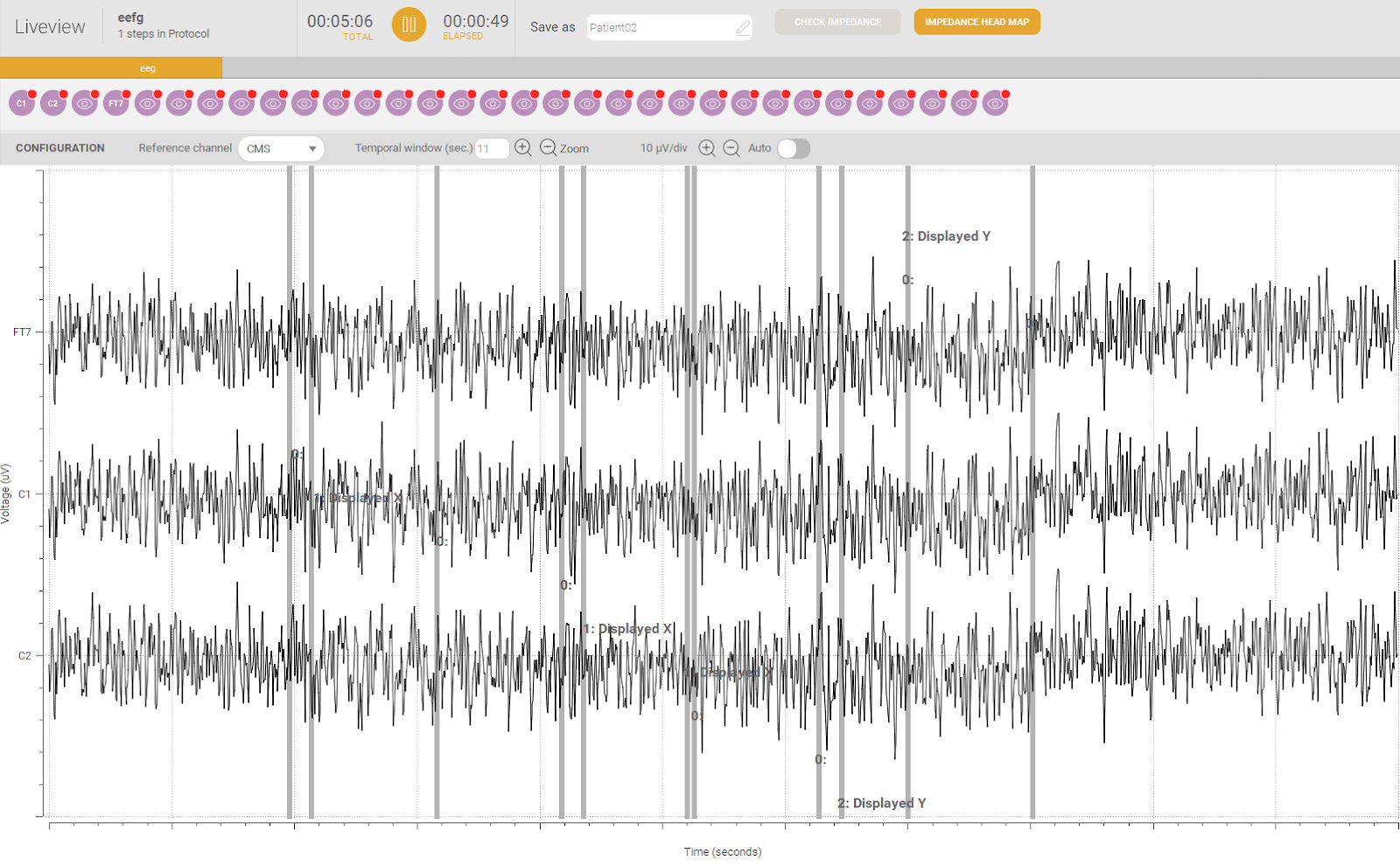

And at the final, you can see the markers in your LiveShowPanel like the following image.
